Description

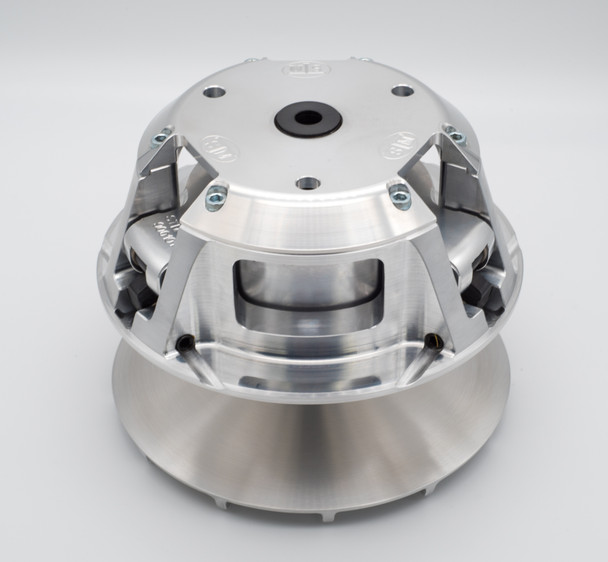

STM Rage3 Primary for CF Moto (Model Fitment Below)
This Rage 3 is an STM primary designed with the stock offset allowing it to be used with the stock secondary.
To take full advantage of an optimal setup we suggest using the STM CF-Moto Tuner driven secondary along with this Rage 3
This clutch offers extremely smooth low engagement with improved torque.
New improved two-way bearing design. The main shaft bearing is now smaller with a 47mm outside diameter allowing a lower initial take off ratio than the past design. Allows tighter belt deflection and smoother transmission shifting.
An affordable replacement for the stock primary clutch. Complete billet design that out performs the existing primary. Using our adjustable SUPERTIP CAN ARMS with the Rage 3 is the perfect recipe for your stock or modified CF-Moto. These STM clutches will fit under the stock cover with no interference. All parts are replaceable and stocked.
The cover is designed to use CFMPS springs.
The Rage 3 comes calibrated with a spring and set of our own adjustable SPUPERTIP CAN ARMS.
This primary uses stock bolt with included STM retaining washer.
A primary clutch puller for the STM Rage 3 is included with this clutch. This will not work on the stock primary clutches.
Each clutch is assembled and set up to run the factory OEM belt.
**Note to remove or install the spider, you will need a Primary Clutch Vice Holding Tool, STM Spider Nut 1-7/16″ Extra Deep Socket 6 Point and STM Rage 3 & 6 Spider Torque Tool. Sold separately.
When ordering, use this guide to help you pick options
Choose Engine HP –Let us know about your bike – is it naturally aspirated/stock? Big Bore kit? Does it have a turbo? If you choose turbo – how much boost? This gives us an idea on how to set the weights up. Keep in mind we can only get you close with weight set up. Everyone’s riding style is different so its up to the customer to do the fine tuning!
FITMENT:
2023:
- C-Force
- 1000cc
- 800cc
- 600cc
- Z-Force
- 950cc (All Models)
- U-Force
- 1000cc
- 600cc
2022
- C-Force
- 1000cc
- 800cc
- 600cc
- Z-Force
- 950HO
- Sport
- 800 EX (non-wet clutch models)
- 800 Trail (non-wet clutch models)
- U-Force
- 1000 XL
- 1000 Utility
- 800 (non-wet clutch models)
2021:
- C-Force
- 1000 Overlander
- 800 XC
- 600cc
- 600 EPS
- Z-Force
- 950cc
- U-Force
- 1000cc
2020:
- C-Force
- 800cc
- Z-Force
- 950 Sport Quad
- U-Force
- 1000cc
2019:
- C-Force
- 800cc
- Z-Force
- 1000cc
- U-Force
- 1000
